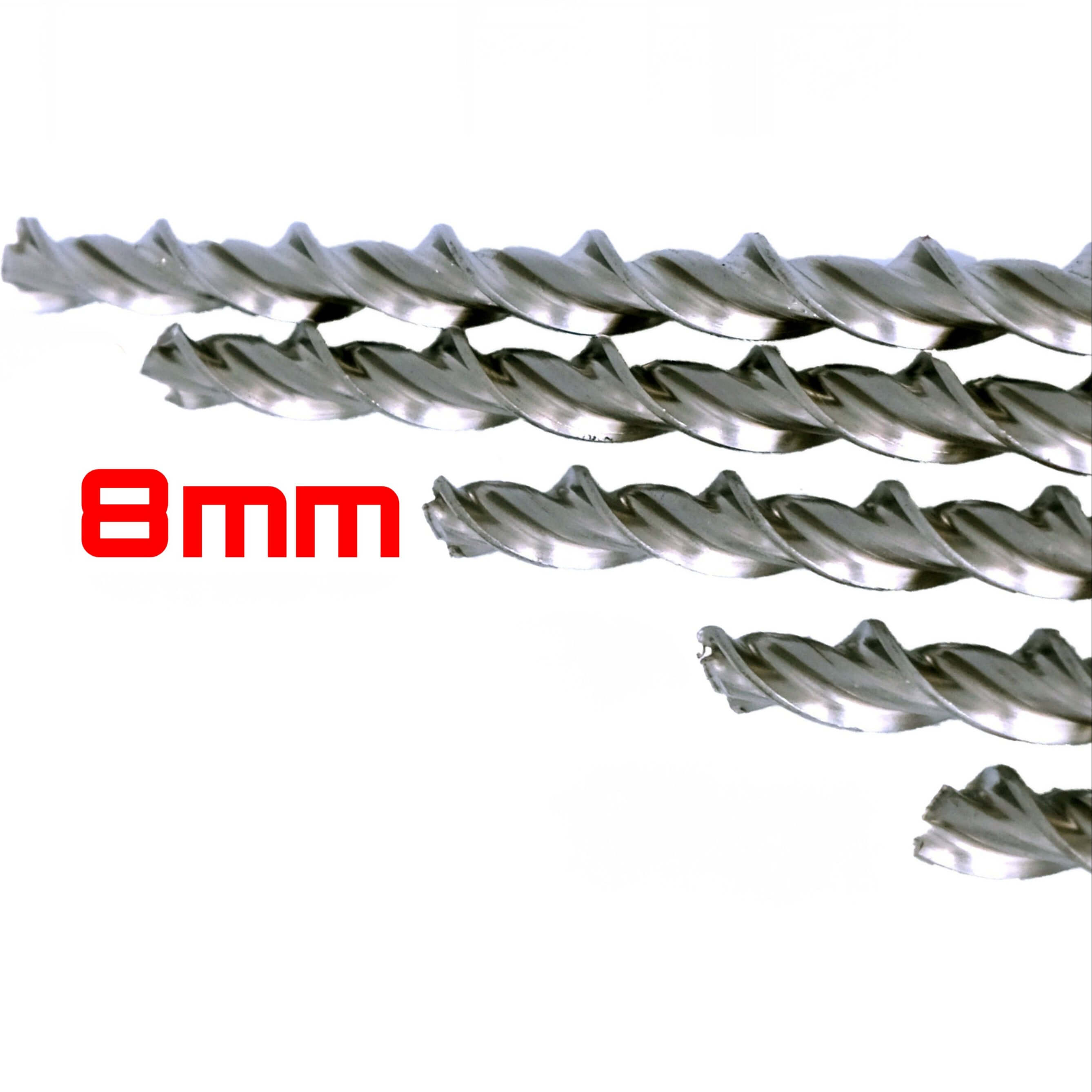

8mm Heavy Duty Crack Stitching Helical Bars x 1m

Our 8mm helical bar is the ultimate solution for repairing and reinforcing cracked masonry, brickwork and concrete. Designed for both professionals and DIY enthusiasts, the bar provides a permanent, discreet and highly effective repair for cracks caused by settlement, thermal movement or structural stress.

Ideal For:

• Cracked brickwork and blockwork
• Damaged lintels and arches
• Structural movement repairs
• Heritage and listed building restoration

When to use 8mm helical bar

Typically 8mm wire is used where cracking is more excessive, and where mortar bed joints are actually wide enough to accommodate the increased diameter bar. Note, it is much more difficult to get 8mm wire into the standard bed width of 10mm (because of variable factors such as brick styles, rubble, etc).

Benefits of 8mm helical bar

• Stiffer in bending than 4mm or 6mm helical wire (resulting in more bending resistance in the completed repair)
• 30% more tensile and shear strength than 6mm bars.

If you're not sure or need further advice, get in touch with us.

• We recommend the use of Strucsol HS grout for bonding wires in Lime mortar, brick or stone walls where the slower curing times assist in gaining clean installation.

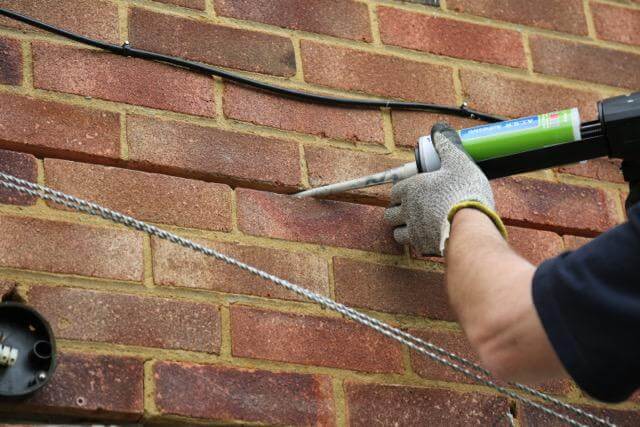

• We recommend the use of Strucsol E.A.S.F resin when immediate full bond strength is required.

Applications

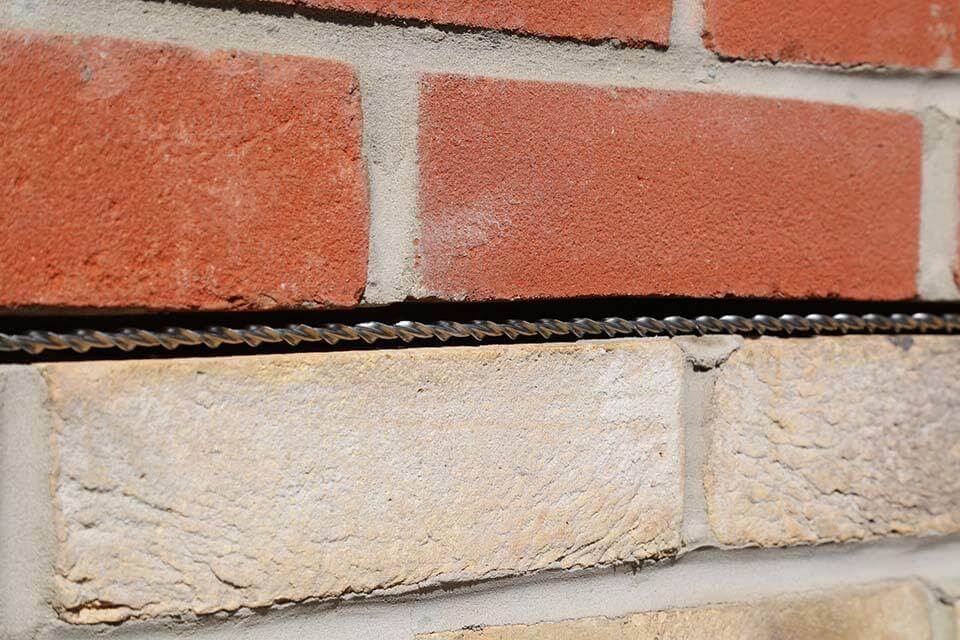

• Crack stitching
• For repair of failed masonry walls
• As an anchor in stone, concrete, AAC and brickwork
• For lintel repair

Material

304CU Austinetic Stainless steel

Dimensions

8mm x 1 metre (1000mm)

Read a full comprehensive list of repair guides specific to your job- our extensive guides that cover all the repairs you might require. Below are the most common types of repairs using this product.

If this still doesn't help you- get in touch- we're more than happy to discuss repair details and specifications with you (even over the phone) and provide you with the right tools for the job.

Product Data Sheet
