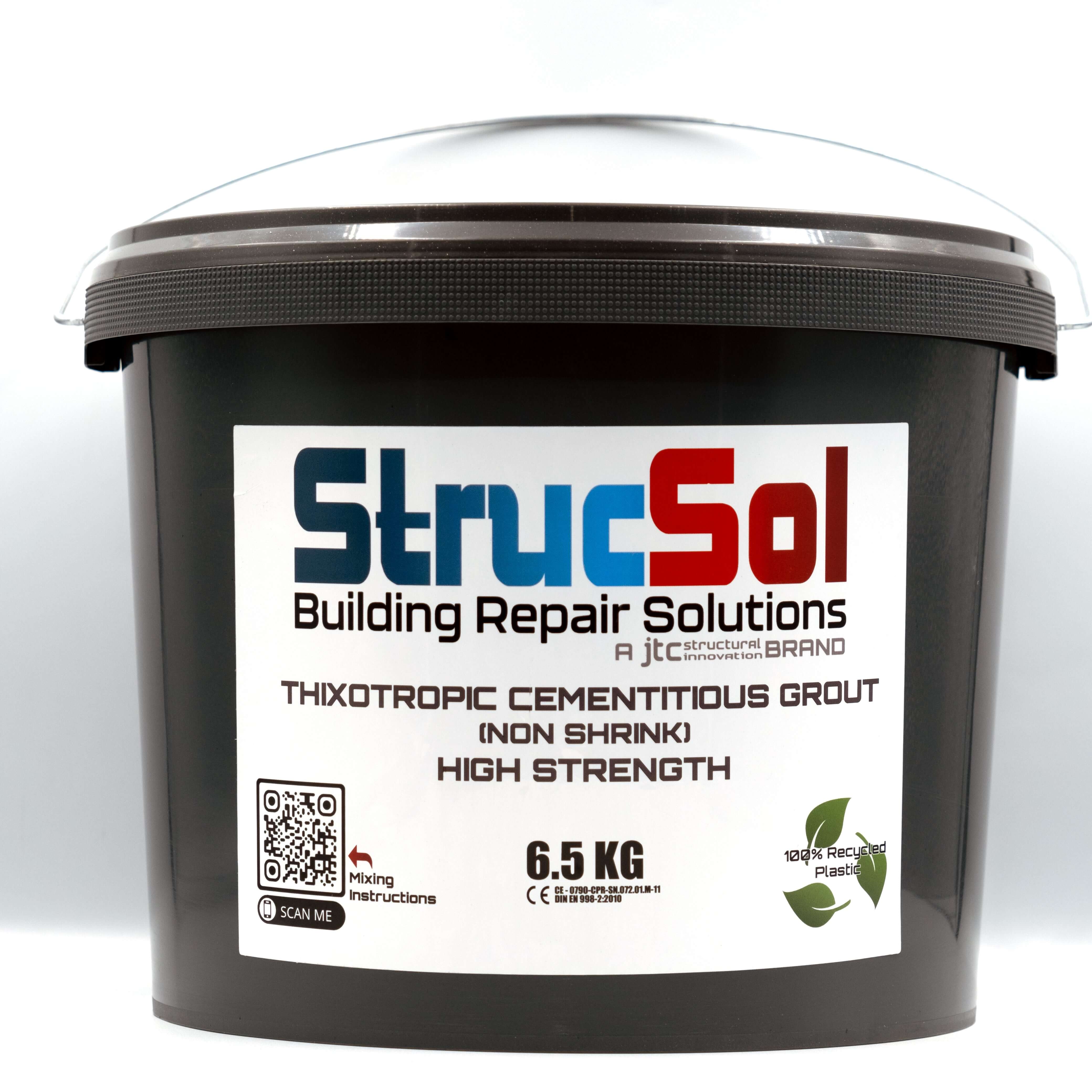

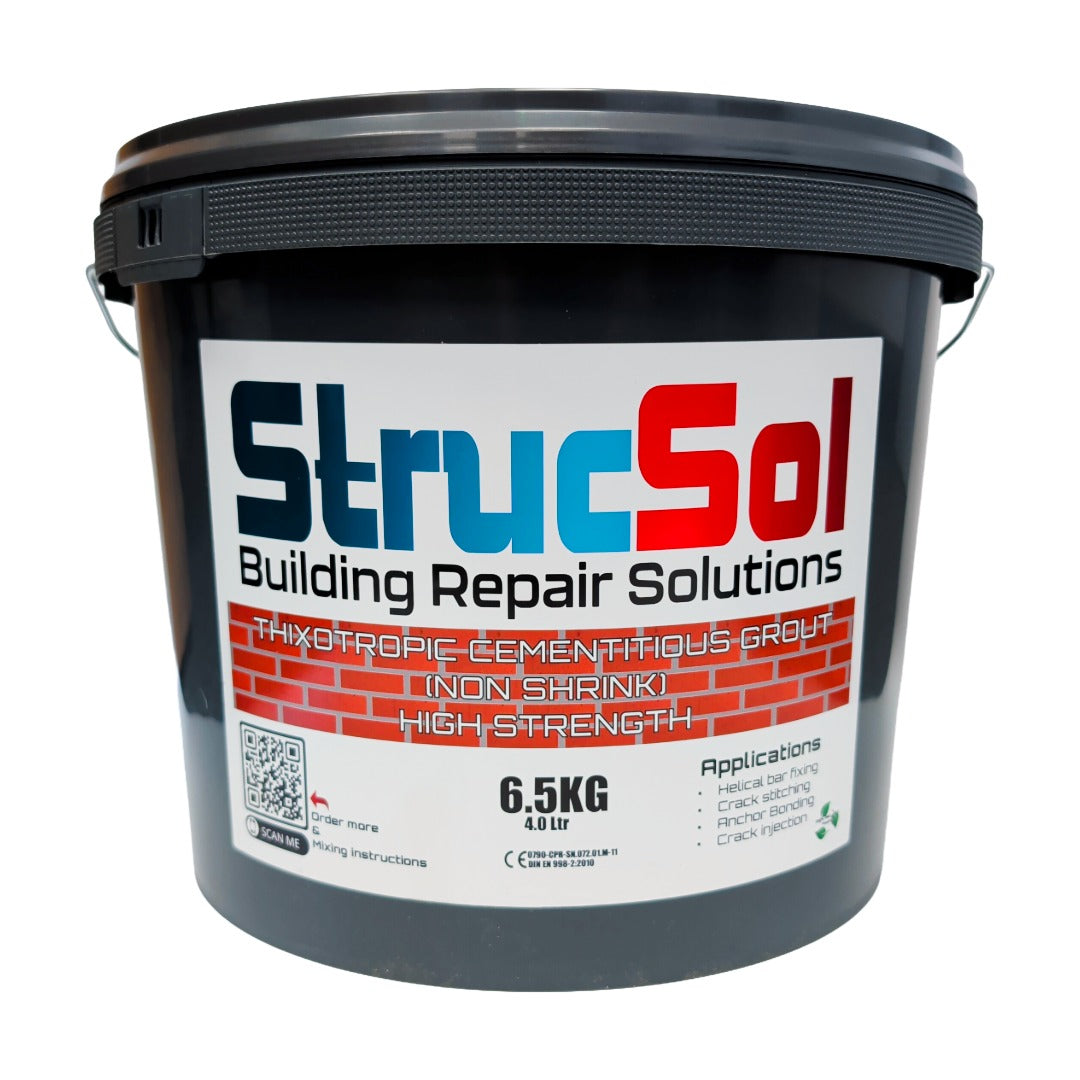

Helical Bar Grout | Strucsol HS Non-Shrink Structural Grout (6.5kg)

Structural grout for masonry repair and crack stitching

Strucsol HS Grout is a high performance masonry repair grout for helical bar crack stitching, window lintel repairs and structural masonry repairs. This high-strength, non-shrink cementitious structural grout is polymer modified and recommended by structural engineers across the UK for remedial work.

Designed for bonding crack stitching bars, it provides excellent adhesion and a strong bond for masonry reinforcement. Suitable for professional and DIY use, this masonry repair grout is used as a direct alternative to Helibond or WHO60 grout. It also works as a helical bar grout or Brickfix grout for crack stitching and a wide range of masonry repairs.

Mixing, application and strength gain

No additional water or ingredients are needed. If a smoother consistency is required for your project, water can be added if needed.

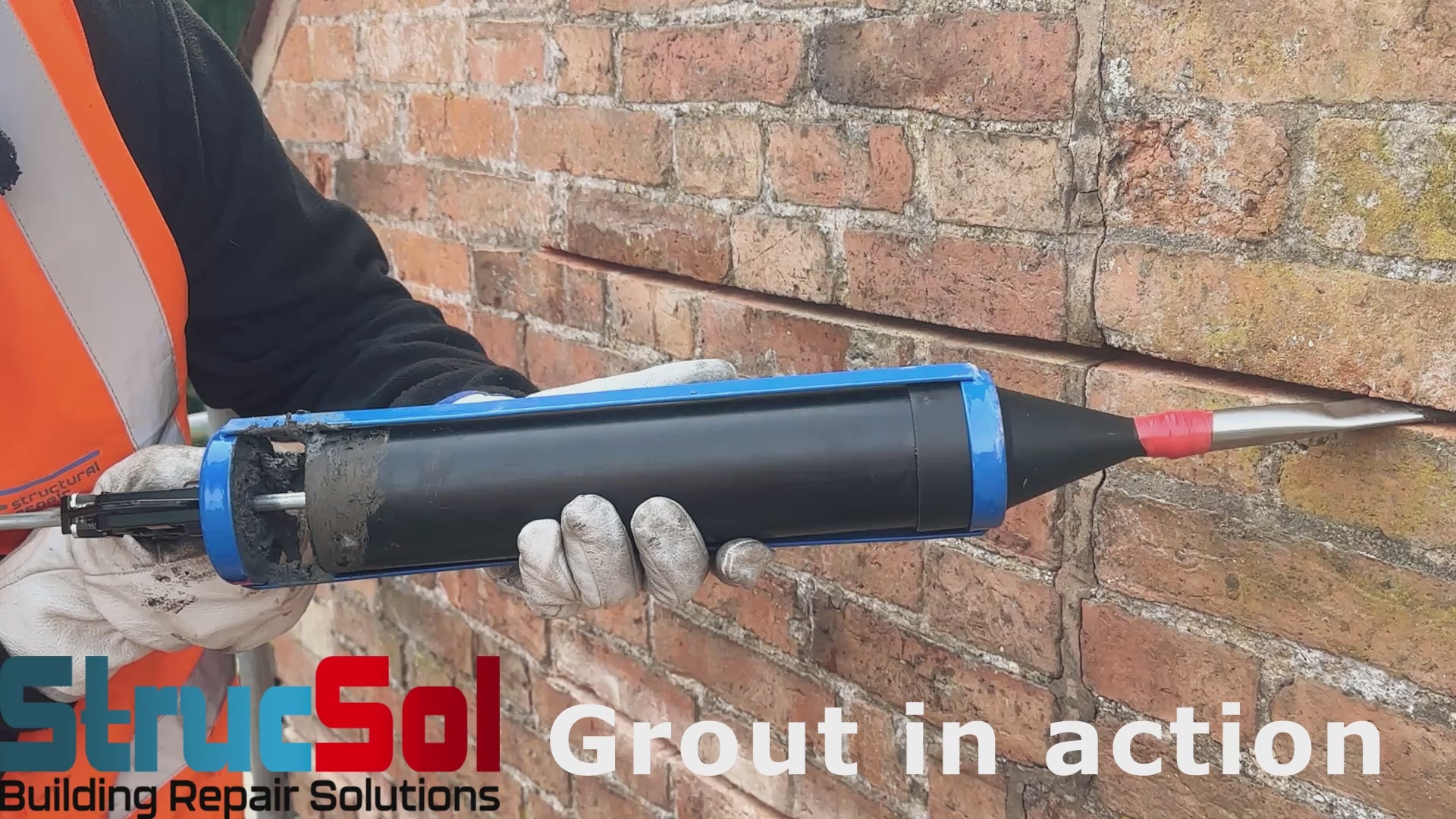

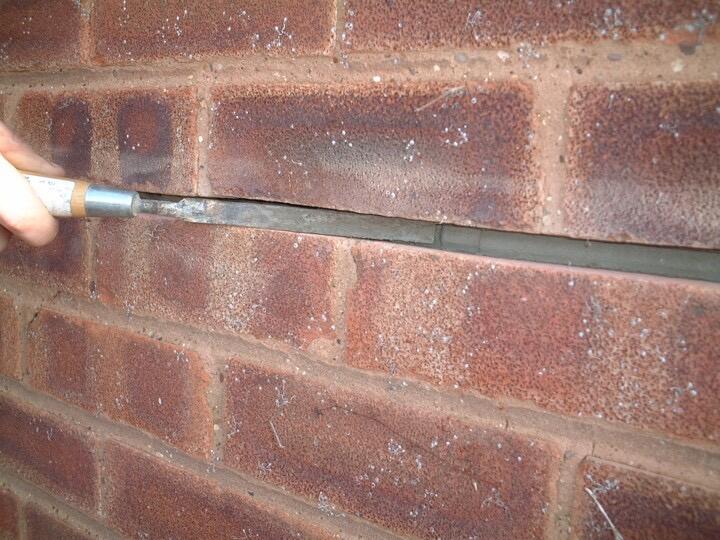

This thixotropic grout is designed for gun application using the Strucsol Grout Gun, however can also be applied by trowel if needed.

Strucsol HS Grout has a setting time of around 30 minutes, with shorter setting times in warmer conditions. Once mixed, it gains strength rapidly, helping repairs reach full strength within 14 days.

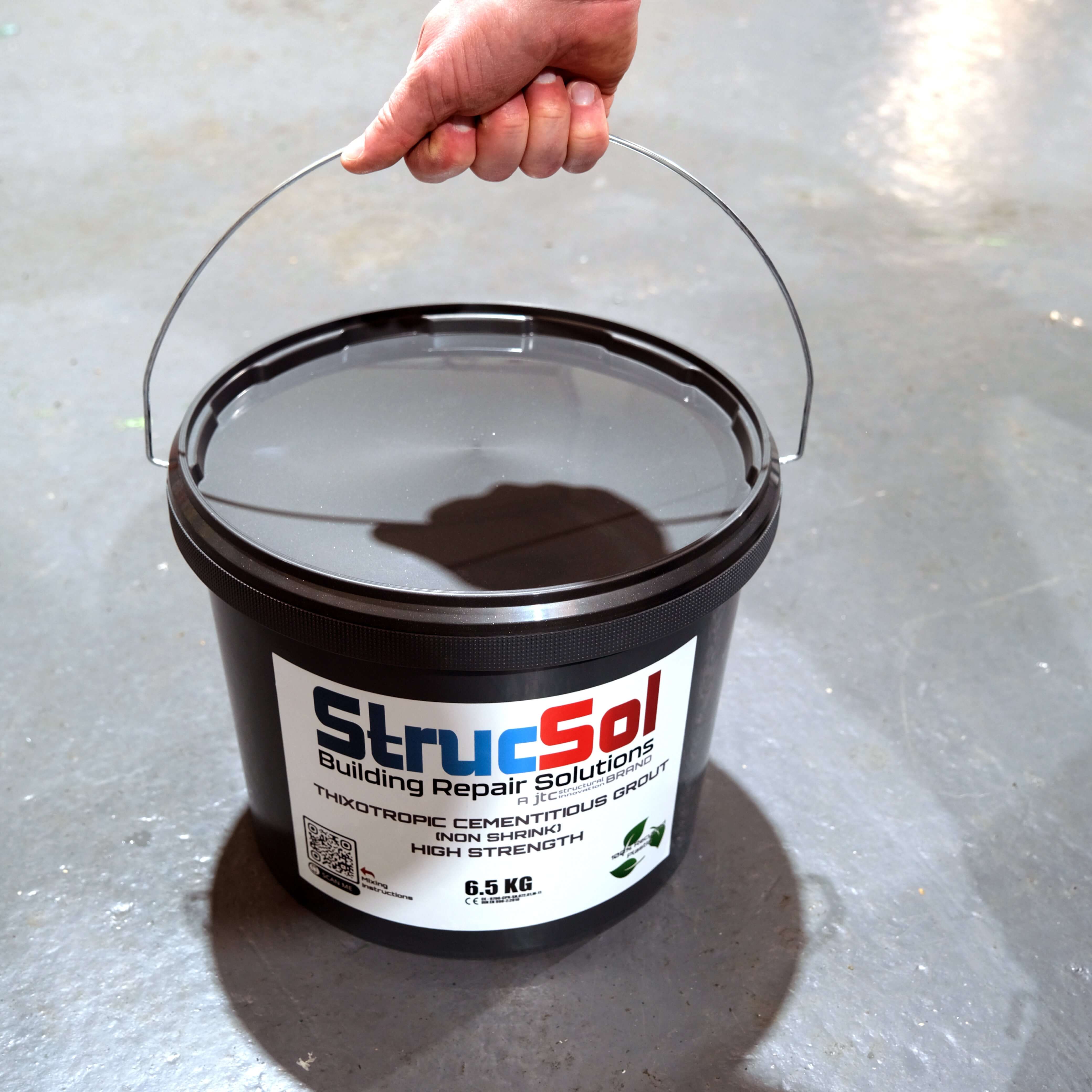

It comes in two individual 5kg packs, allowing for part mixes when needed.

Applications for structural masonry repair

• Bonding crack stitching bars for masonry crack repairs
• Masonry beaming for window lintel repairs and ground beams
• Anchor bolting
• Void filling
• Crack filling
• Plate grouting

For retrofit masonry reinforcement and crack stitching repairs, it can be used for bonding stainless steel and composite helical bars.

Benefits of Strucsol HS non-shrink grout

• Higher yield than resin, making it cheaper per metre to install.
• Higher compressive and bond strength than polyester resin.
• Suitable for repairs to heritage and lime mortar buildings.
• Accelerated strength gain.

This non-shrink masonry repair grout pairs with helical bars for crack stitching and masonry reinforcement.

Coverage

6.5kg of masonry grout is enough to install approximately 12m of single 6mm helical bars in a 10mm × 30mm joint. Linear coverage increases or decreases depending on bed joint depth and width.

6.5kg of masonry grout is enough to install approximately 71m of twin 6mm helical bars in a 10mm × 40mm deep joint. Linear coverage increases or decreases depending on bed joint depth and width.

Each bucket contains the same volume as 10 × 400ml tubes of resin.

Industry experience

“Strucsol HS Masonry Non-Shrink Grout is a versatile and reliable solution for crack stitching and masonry repair. Its high strength properties and non-shrink formula provide long-lasting stability and durability, making it a perfect pairing for helical bar grout,” says Jonathan Thomas, founder of Strucsol, who has 40 years’ experience in the industry.

Easy to mix and apply, the grout provides a strong bond for professional and DIY masonry repairs.

Product data sheet
