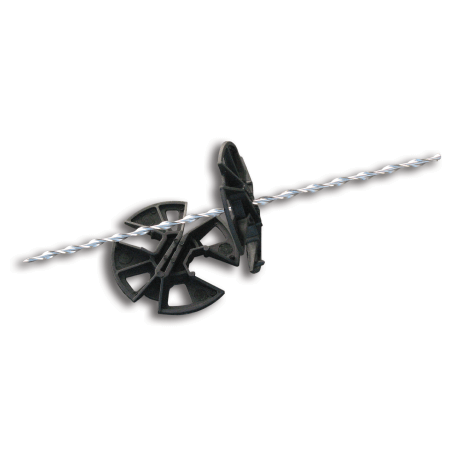

Timber Frame Wall tie

Timber Frame Wall tie

Regular price £73.44
Regular price Sale price £73.44
Sale Sold out
Shipping calculated at checkout.

Sold in packs of 100

The Strucsol timber frame wall tie is available in lengths to suit cavity up to 300mm wide.

How to install:

The tie is easily installed using a hand held support tool- available here. It is cut to length to ensure consistent penetration into the inner timber frame and the protruding section of the tie is then bonded into the mortar of the brickwork.

The Unique high fin profile of the timber frame tie ensures maximum pull out strength- easily exceeding minimum performance requirements even in the poorest quality timber. The small cross sectional area also ensures minimal heat loss through the insulating material. The tie will be provided with an insulation support disk, designed to hold the insulation firm against the timber frame and leaving the open part of the cavity clear and unbridged.

Download Product Data Sheet PDF
