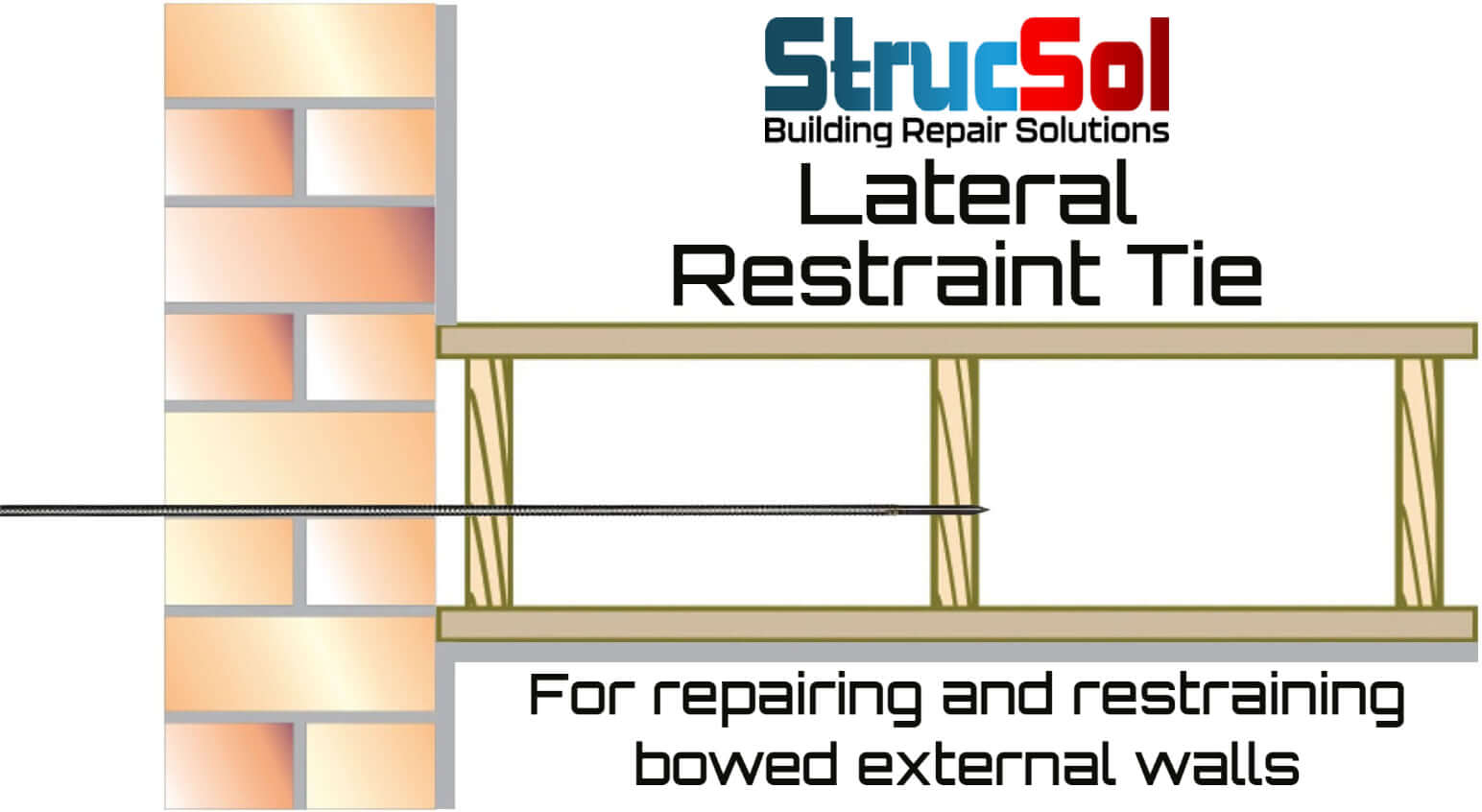

Lateral Restraint Ties for repair and support of bulging or bowed walls

Lateral restraint ties (also known as BowTies or Helifix bowties) manufactured and supplied by Strucsol are used and trusted across the UK to help control bulging or bowing walls by connecting the bowed wall to internal timber joists.

Walls that bow or bulge outward usually stem from poor construction practices, inadequate design or overloading of the structure, often involving a lack of proper connections between the masonry and the floor and ceiling joists. This issue is commonly identified as "inadequate lateral restraint".

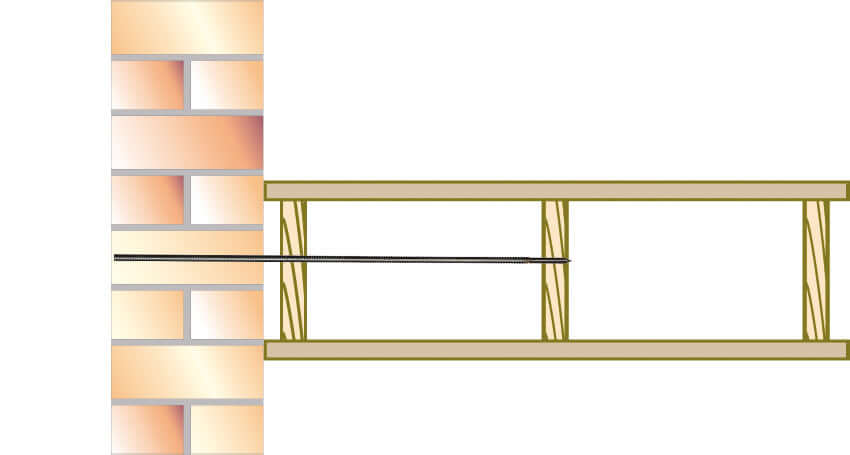

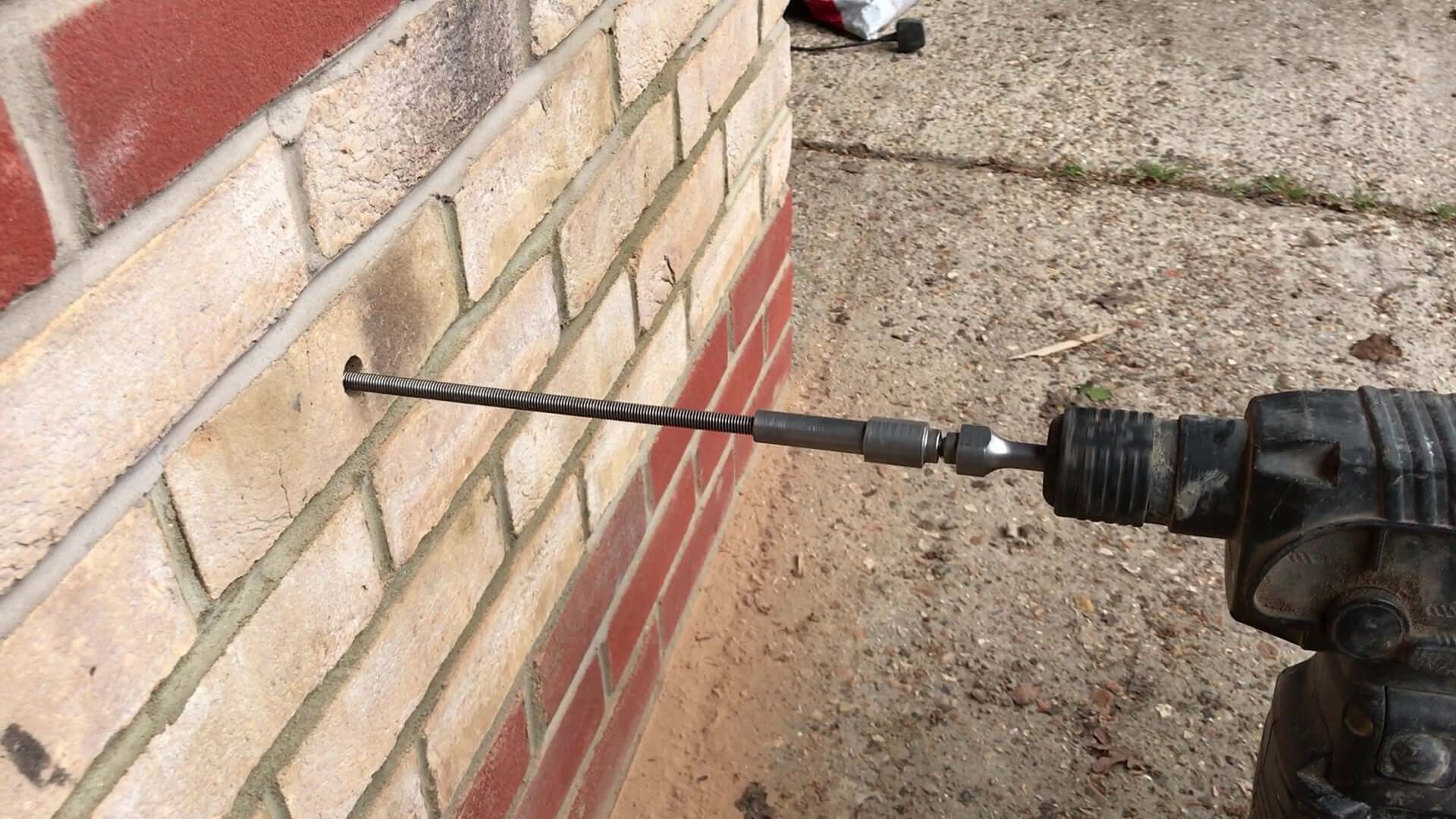

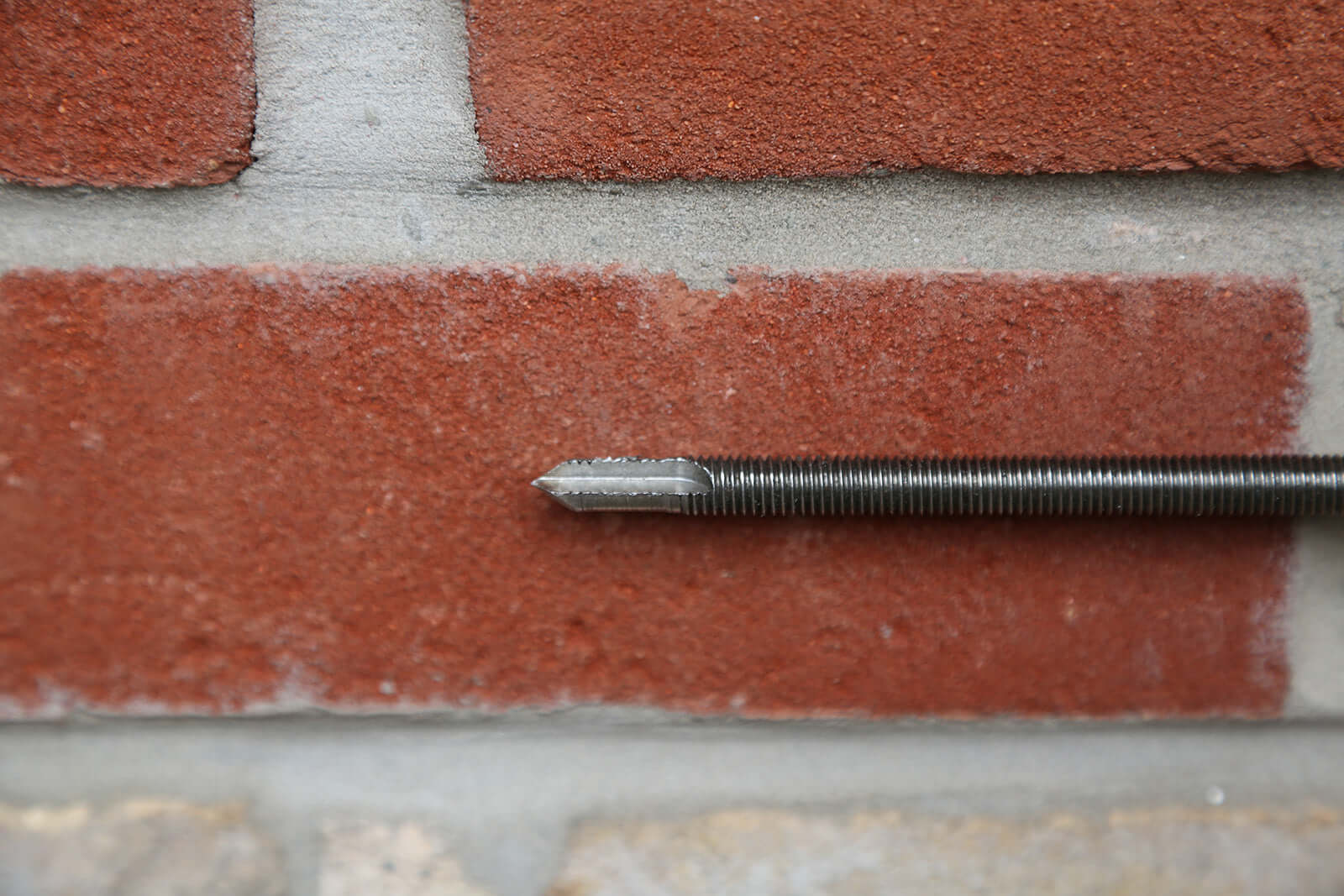

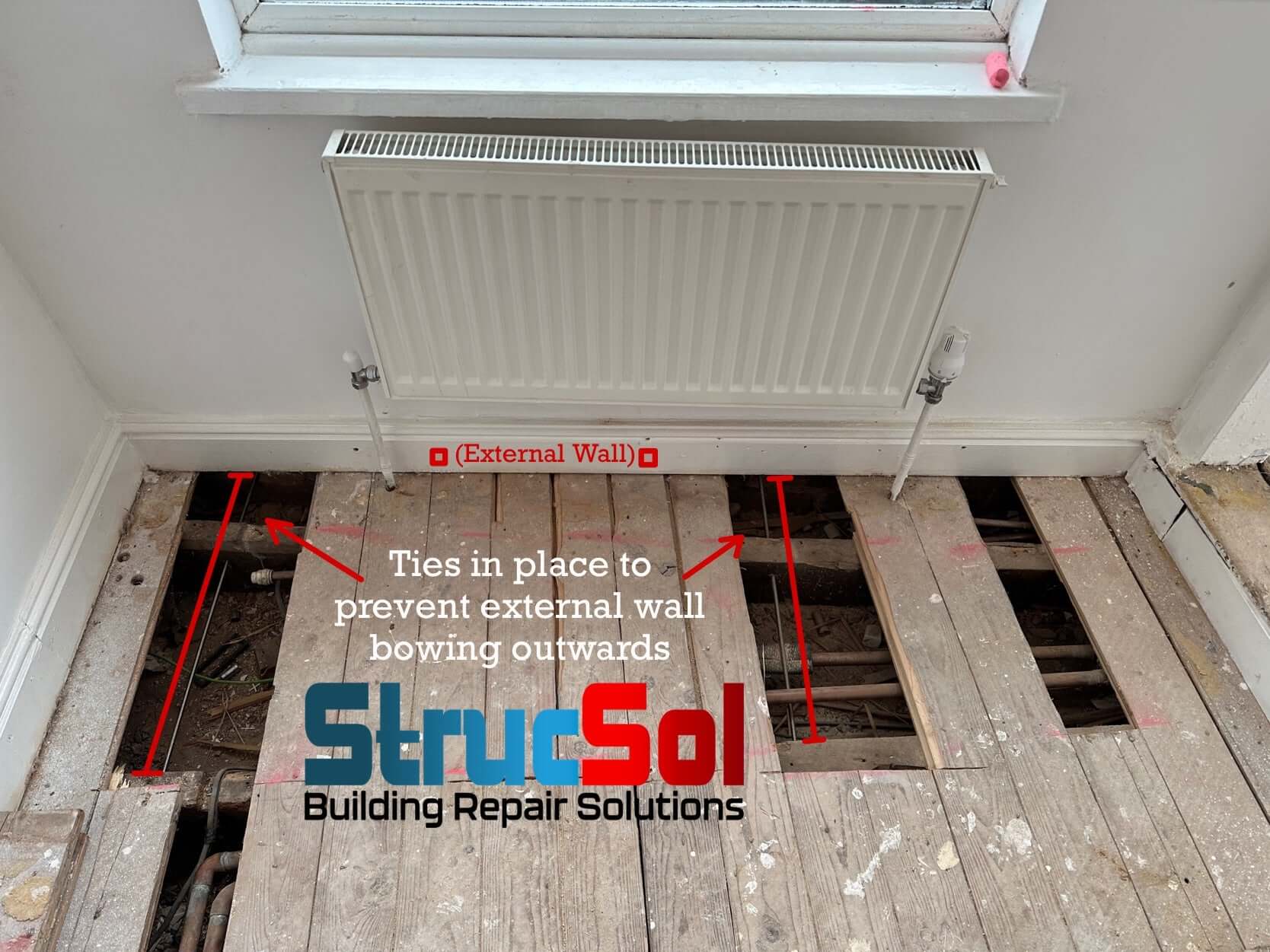

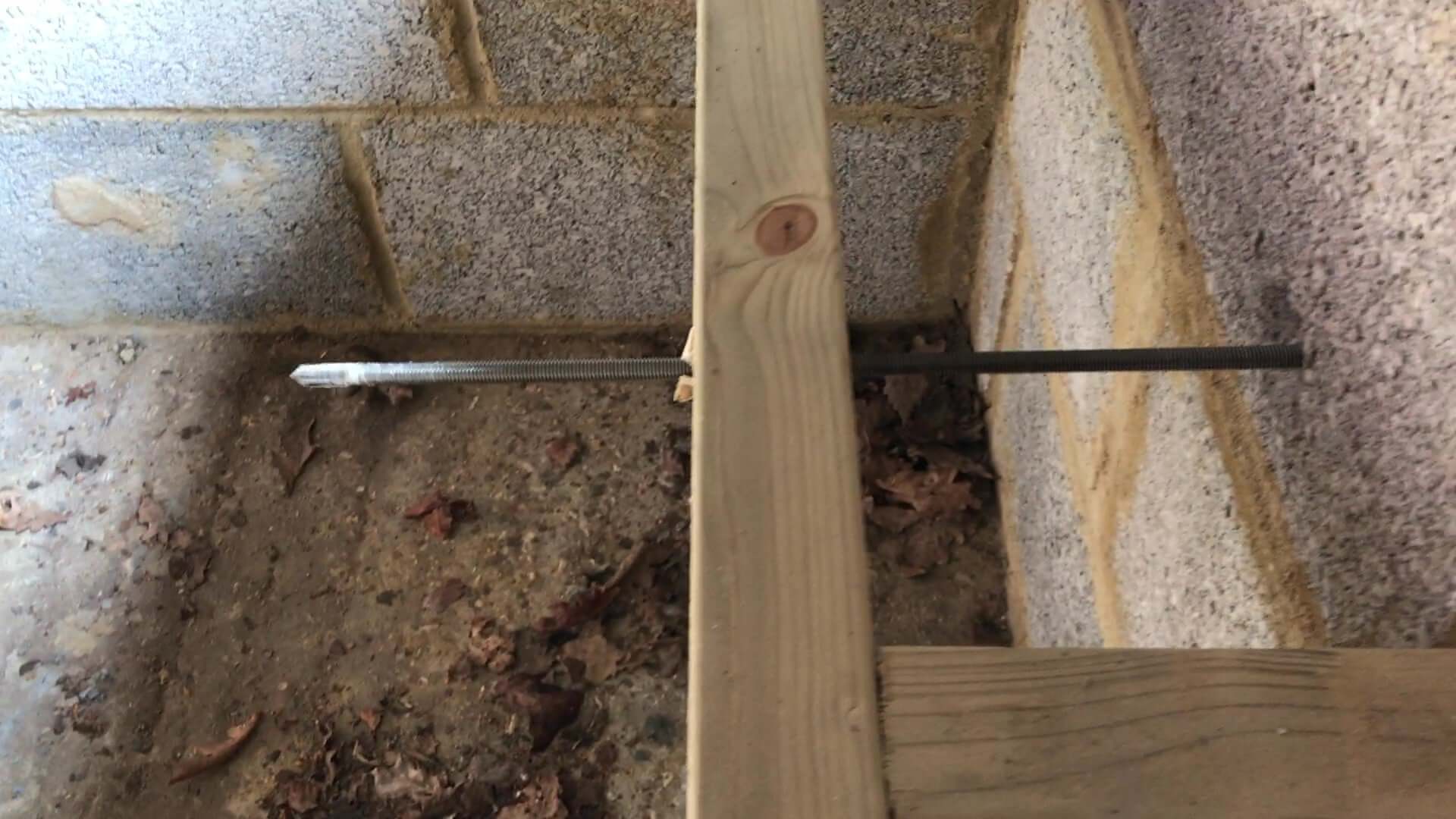

A stainless steel lateral restraint tie (also known as a bow tie) for locking external walls deep into the web of the internal floor joists to resist outward movement of the wall. The LRT is installed from the outside of the building through a 14mm pilot hole and the tie is screwed through the side grain of the internal floor joists in the void between the underside of the floor boards and ceiling below. The tie is installed using the StrucSol LRT install key SDS

Lateral Restraint Ties / BowTies : what are they?

Strucsol lateral restraint ties, often referred to as bowties, are high-strength reinforcement products designed to provide essential lateral support and stability to masonry and brick walls. These versatile ties are used in structural repair projects to help prevent wall movement, shifting or bowing, helping to maintain the long-term durability and integrity of buildings.

Why Choose Strucsol Lateral Restraint Ties?

Strucsol lateral restraint ties, or bowties, are a practical solution for reinforcing and stabilising masonry and brick walls in both new construction and retrofitting projects. Offering effective lateral restraint and helping to prevent structural movement, Strucsol lateral restraint ties support long-term stability and minimise the risk of wall deterioration.

Key Benefits of Strucsol Lateral Restraint Ties (Bowties):

• Enhanced Wall Stability: Strucsol lateral restraint ties (bowties) provide critical lateral support, reinforcing walls against movement, bowing or cracking.
• Quick & Easy Installation: These ties are designed for straightforward installation, allowing professionals to apply them with minimal disruption to the existing structure.
• Cost-Effective Reinforcement: They offer an affordable solution to wall stabilisation, helping to avoid costly repairs or rebuilds.
• Long-Lasting Performance: Made from durable, high-quality materials, Strucsol lateral restraint ties provide long-term protection against environmental pressures and wear.
• Versatility: These ties are suitable for a wide range of applications, from residential buildings to commercial properties and heritage structures.

How do you install Strucsol Lateral Restraint Ties?

For a full guide on how to install lateral restraint ties, see our guides and method statements here.
