Premium Brick Stitching Kit: Crack Stitching Bars & Resin for Structural Crack Repair (10m Coverage)

Professional-Grade Crack Stitching Kit for Brickwork & Masonry | Easy DIY or Contractor Use

Complete & Ready-to-Use Kit containing both helical bar and resin (often generically referred to as a helifix crack stitching kit)

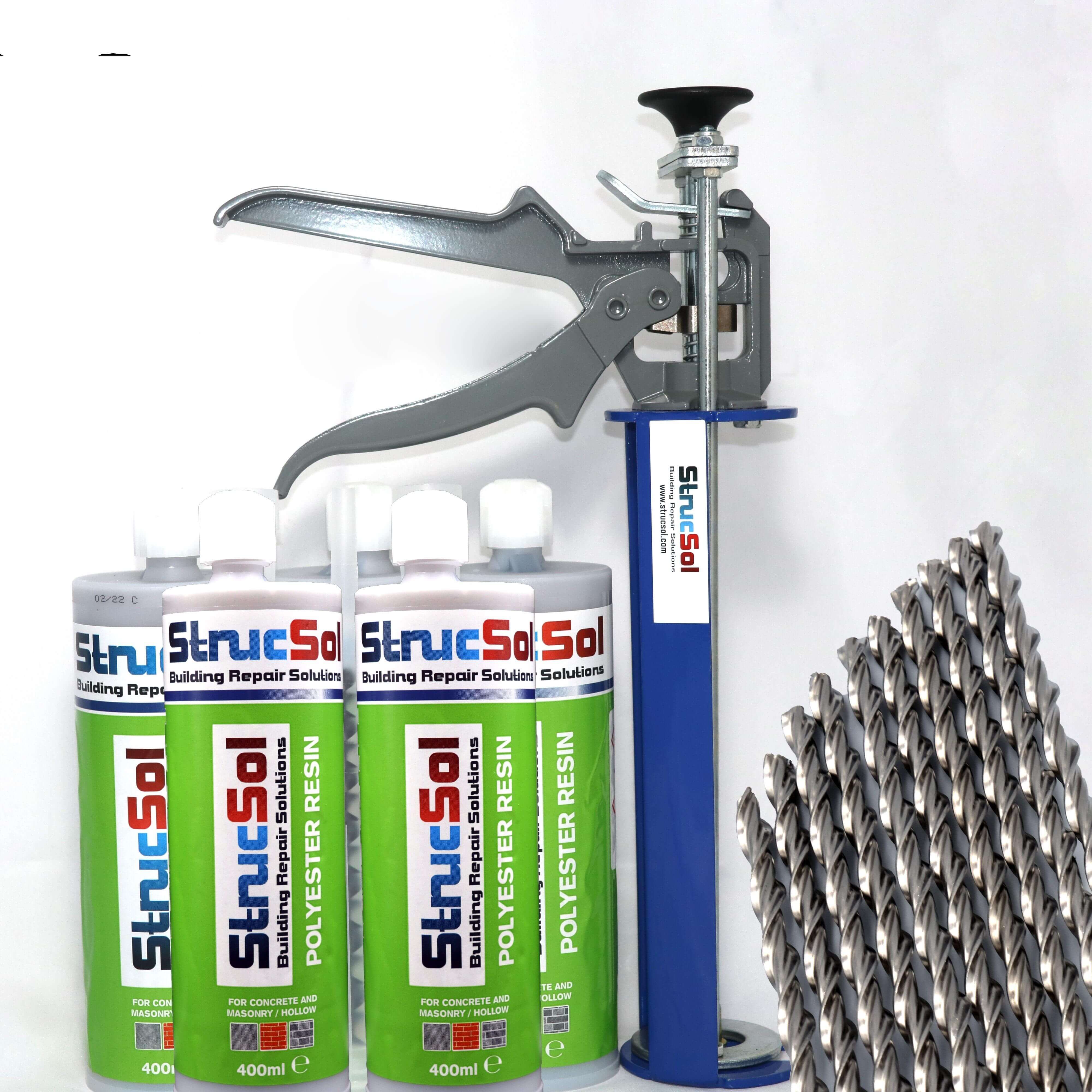

Our brick stitching kit contains:

• 10 6mm x 1m crack stitching bars (304 CU Austenitic stainless steel for superior strength and corrosion resistance)

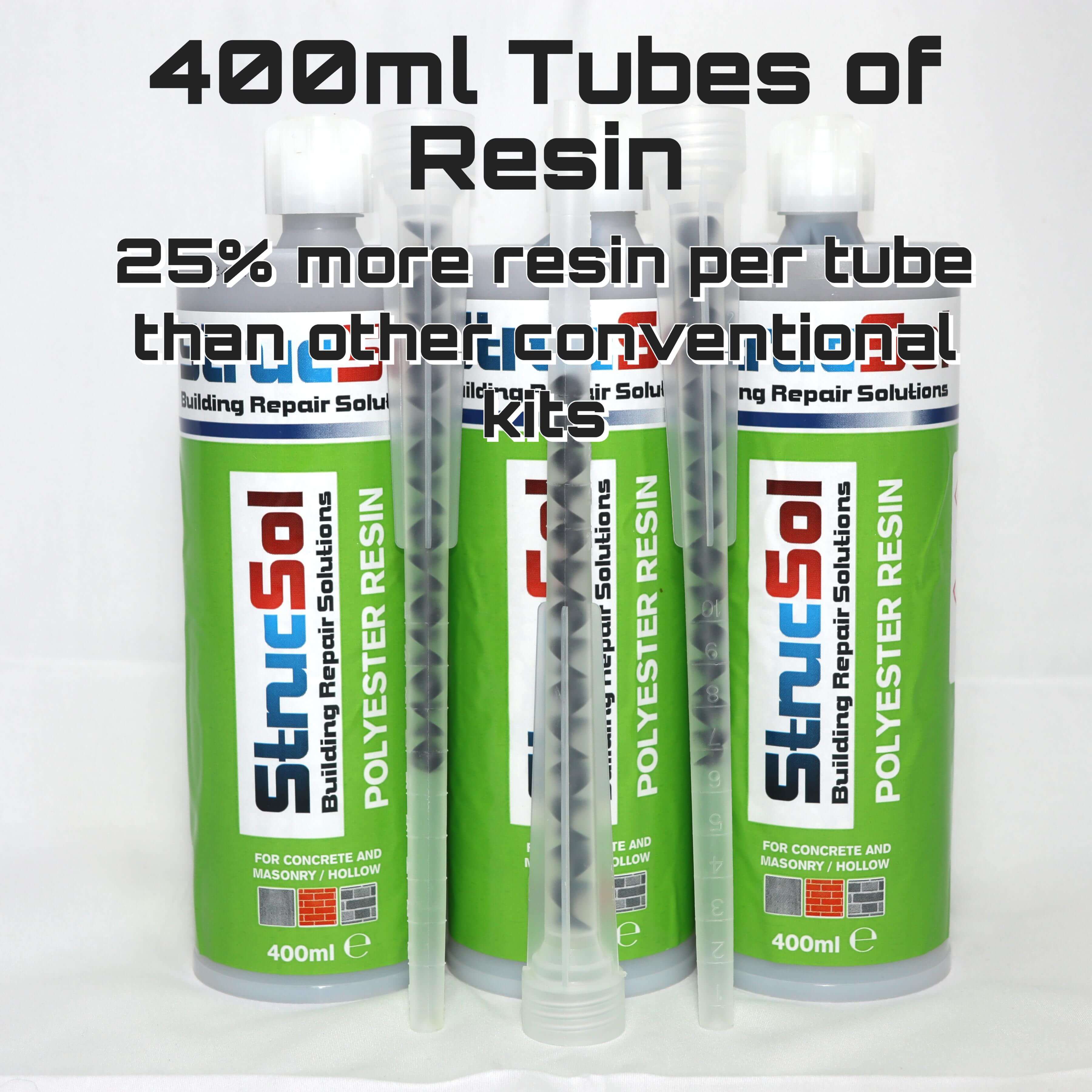

• 5 400ml tubes of Strucsol Polyester rapid-set resin (25% more resin than standard 300ml tubes)

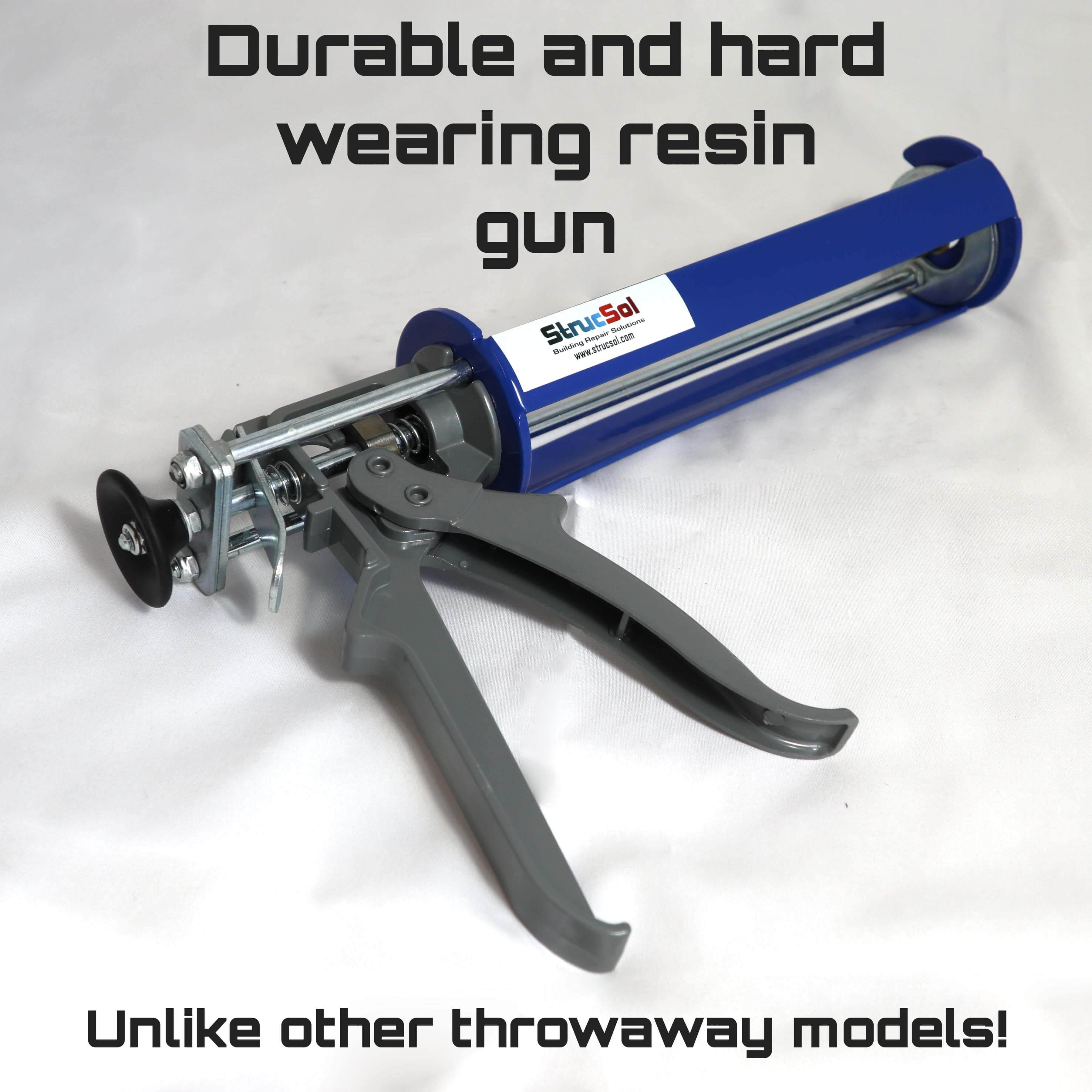

• 1 Heavy-duty resin applicator gun (designed for smooth, efficient application)

Additional extras such as mortar raking blades and pointing trowels and helical bar tools can be added on to your order if needed- see the add on box when adding to basket

Crack Stitch Kit Applications:

• Brickwork Repair: Fixes vertical, horizontal, or stepped cracks in brick walls, chimneys, and facades.
• Masonry Restoration: Strengthens cracked stone, concrete, or blockwork in buildings and structures.
• Arch Stabilisation: Reinforces cracked or weakened arches in heritage or modern properties.
• Foundation Repair: Once the foundational repair has been carried out, crack stitching can be done to reinforce the superstructure above. NOTE crack stitch repair is not a foundation repair method on it's own.
• Garden Walls: Repairs cracks in garden walls, retaining walls, and boundary structures.
• Heritage Conservation: Preserves listed buildings and historical structures with discreet, strong repairs.
• Coastal Properties: Ideal for high-salinity environments where corrosion resistance is critical.

Struggling with cracks in brickwork, masonry, or concrete? Our crack stitching kit is the ultimate solution for repairing vertical, horizontal, or stepped cracks in walls, arches, and foundations. Using high-strength crack stitching bars and rapid-set resin, this crack stitching kit delivers a permanent structural repair. Ideal for homeowners, DIYers, and builders alike.

This wall stitching kit includes everything you need (barring a few extras such as mortar raking blades and pointing trowels, as most people usually already have these; however, you can easily add these to your order if you wish via the add-ons box!) to repair approximately 10 meters of cracking (coverage depends on bed joint thickness). Whether you're restoring a heritage building, modern property, or garden wall, our Helibar stitching and resin system ensures a strong and visually discreet repair.

Why choose our brick repair kit?

Unmatched Strength & Corrosion Resistance

Unlike lower-grade alternatives, our crack stitching bars (similar to helifix crack stitching bars) are UK-manufactured from 304 CU Austenitic stainless steel, ensuring high linear strength and exceptional corrosion resistance. Perfect for coastal properties or high-salinity environments where inferior materials may fail.

Easier Application with 400ml Resin Cartridges

Most helical bar kits use 300ml resin cartridges, which often struggle to push thicker resins due to weak applicator guns. Our 400ml cartridges and heavy-duty gun eliminate this issue, making application smoother and more efficient. For best results in cold weather, warm the resin in hot water for 15 minutes before use. With proper care, the gun will last for many future projects.

Discreet Repairs

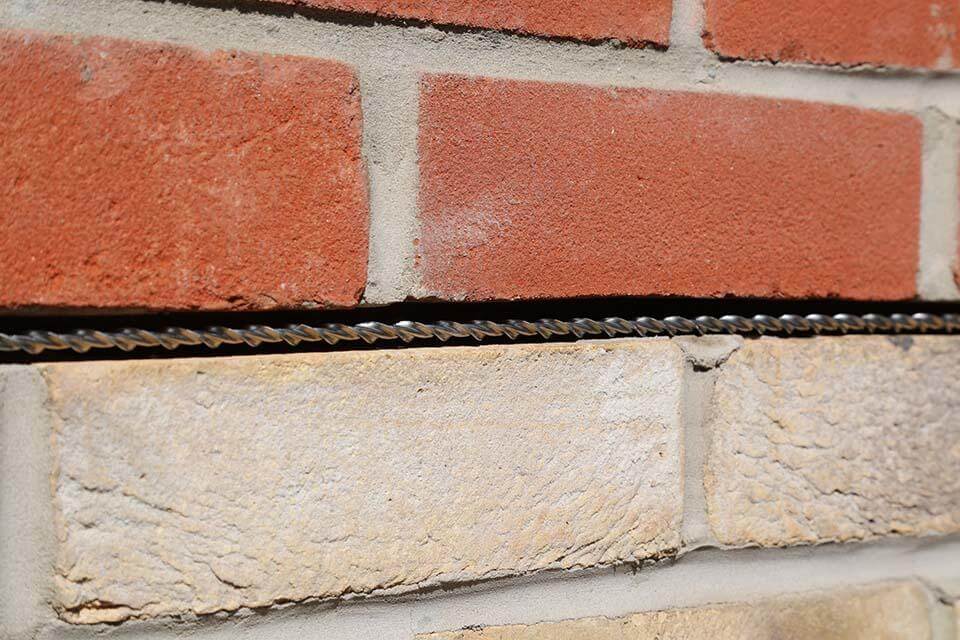

The helical bars bars in our crack stitch kit blend seamlessly into your masonry when bound with the resin and repointed with matching mortar over the top, ensuring a clean and almost invisible finish: ideal for listed buildings, heritage properties, and modern homes where aesthetics matter.

Full Technical & Design Support

We provide comprehensive technical support to ensure your repair is successful. Send us a photo of the problem area, and we’ll overlay a repair specification onto the image, recommending the best approach and products for your needs.

How Our Crack Stitching Kit Works

You can follow the comprehensive video and visual guide on completing cracked brickwork repairs here, or read on below for a summary:

Prepare the Crack

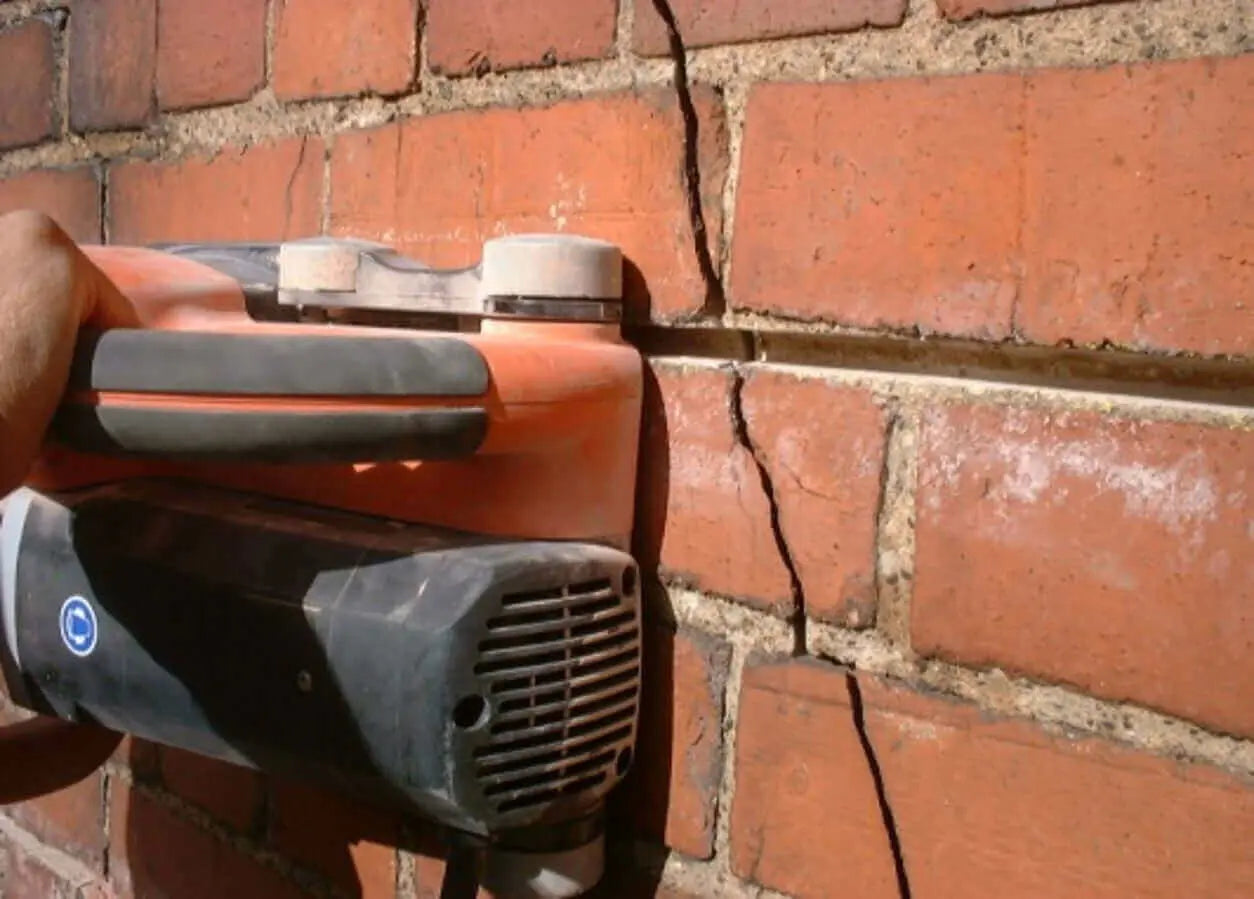

Rake out the mortar joint to allow for 500mm spacing either side of the crack for the bar to slot into. Make sure to remove as much dust from the slot as possible using either an industrial vacuum or one of our manual dust blower pumps. If possible, dampen the slot with water, as this helps the resin bind to the surroundings better.

Install Helical Bars

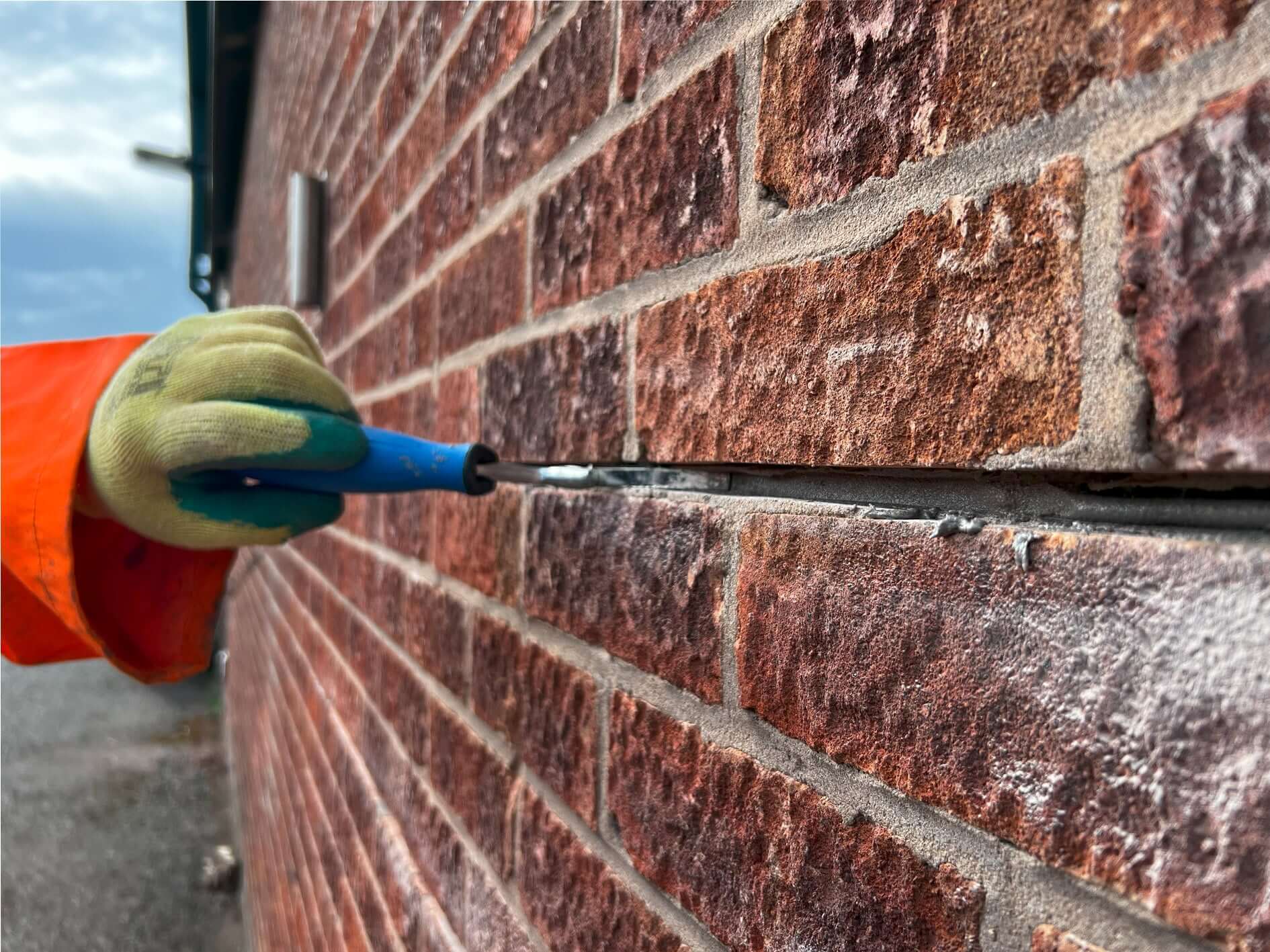

Apply a bead of the resin (make sure to discard the first 10ml of the tube, as this won't be fully mixed) along the full width of the back of the slot, and insert the stainless steel crack stitching bars into this resin using one of our pointing trowels, followed by another bead of resin over the top of the bar.

Finish & Inspect

Smooth the resin over with the pointing tool, allow 10 minutes for the resin to set, and you can now begin preparing to repoint mortar over the top of the resin.

Who can benefit from this crack stitch repair kit?

Our brick stitching kit is ideal for:

• Homeowners fixing cracks in brickwork, chimneys, or garden walls
• Builders and contractors needing a reliable, long-lasting repair solution
• Property developers restoring older or damaged buildings
• Heritage conservationists preserving historical and listed structures
• DIY enthusiasts looking for a professional-grade, easy-to-use crack stitching kit

Order Your Crack Stitch Kit Today!

Don’t let cracks compromise the safety or appearance of your property. Our crack stitch repair kit offers a permanent, cost-effective solution. Order now and restore your structure with confidence!

Our helical bar is manufactured in the UK out of 304 CU Austenitic stainless steel, unlike lower grade alternatives manufactured from ferritic stainless steel. This means that it has high linear strength and corrosion resistance allowing for consistent maximum bond strength gain when paired with the grout or resin bonding adhesive. Strucsol helical bar can be used with great confidence and durability in areas of high salinity such as coastal properties without fear of corrosion or fatigue failure.

Full technical and design support supplied with product- if you send us a photo of the problem area we will overlay the repair specification onto the photo and recommend required products (see sample method statement in Photos)

Why not add a mortar raking blade to your order? These are essential for raking out your bed joints- or click the box above to include this in your order.

For a full and comprehensive guide on completing crack stitch repairs, please visit the guide here

Give Ultrabar composite a try:

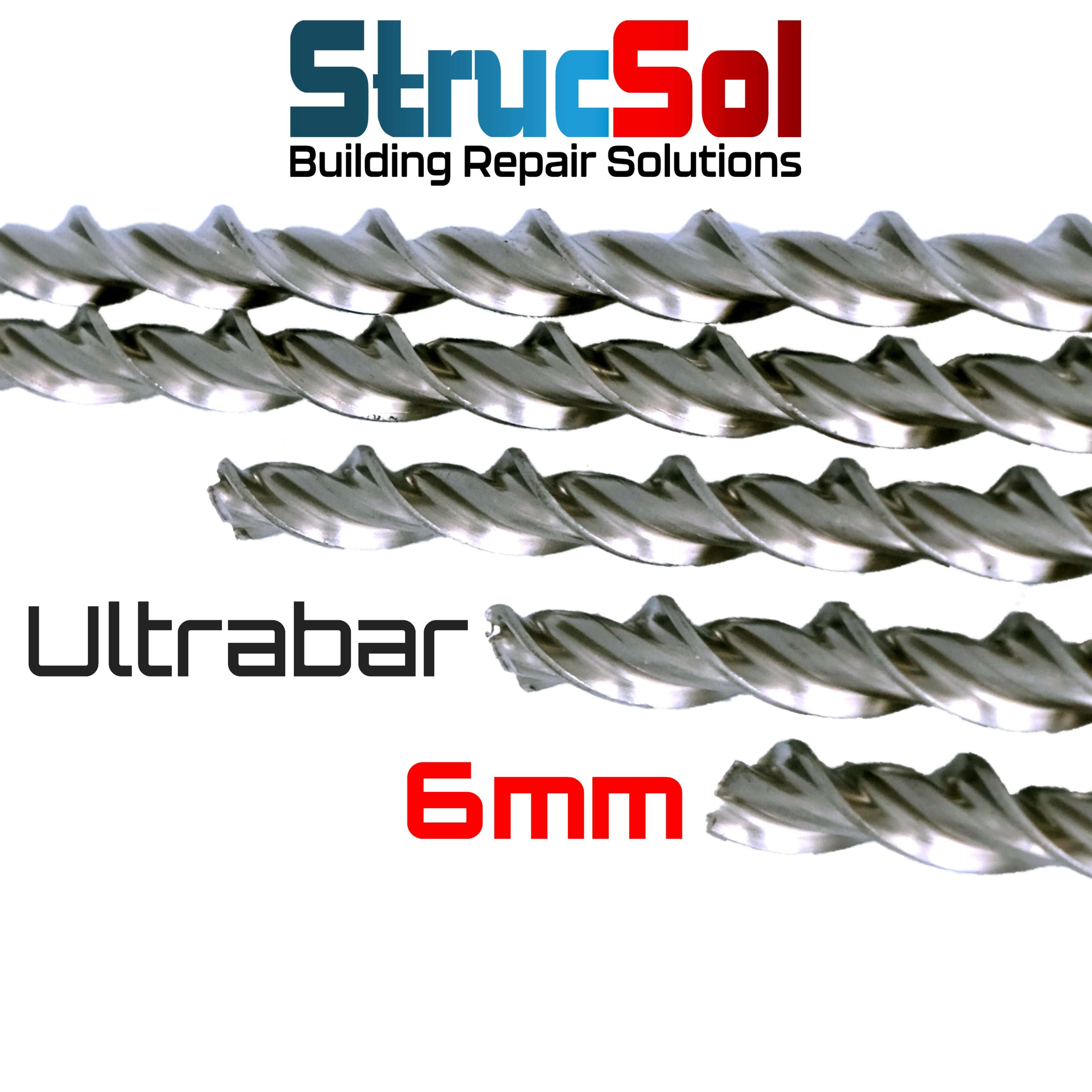

HAVE YOU TRIED our new Ultrabar Composite kits? Our next generation helical bar performs 5 times stronger than stainless steel!

If you need any other materials, tools, resources or any advice regarding specific building requirements- don't hesitate to contact us.
