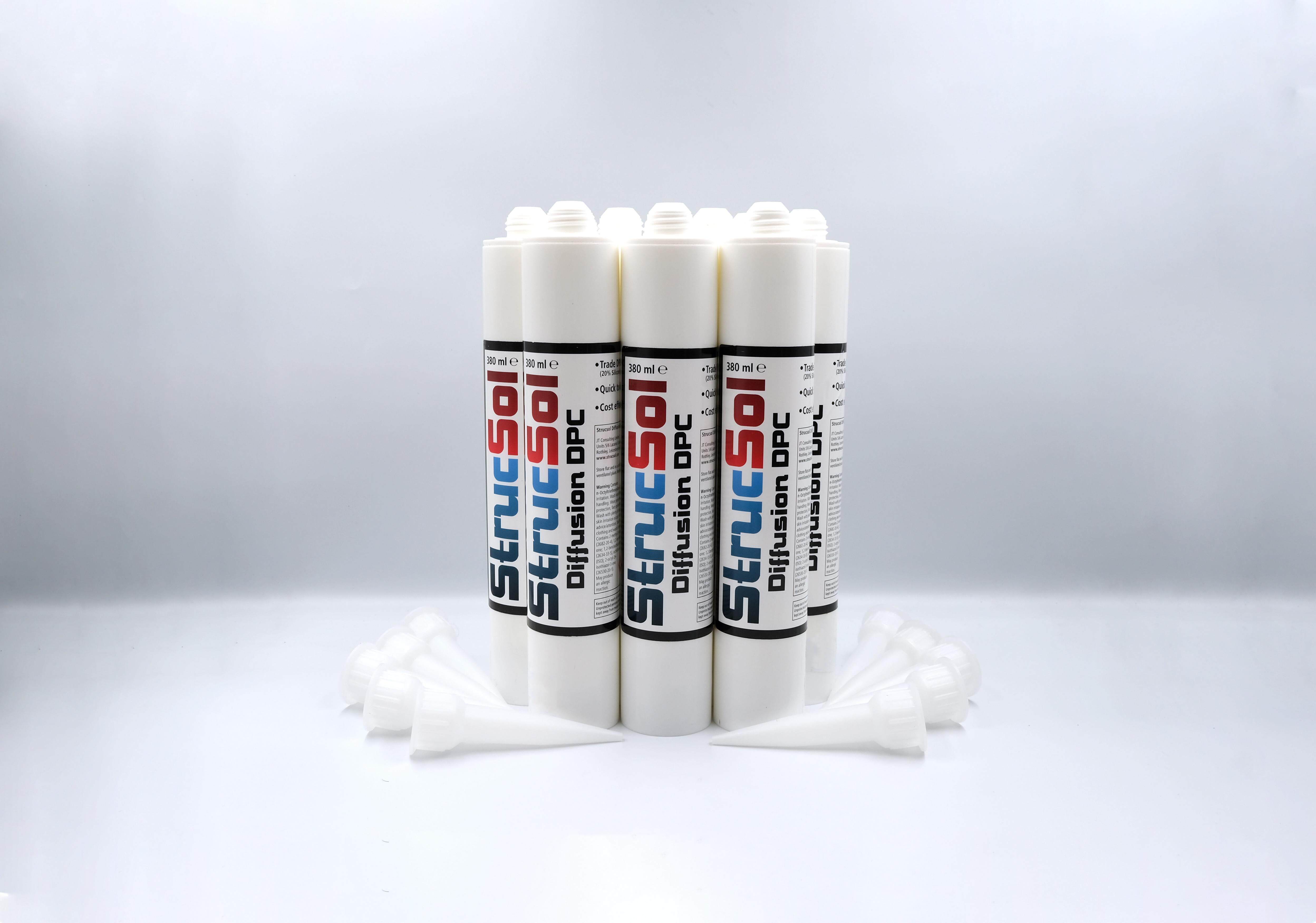

Pack size: 10
Usage per 380ml cartridge
Wall Thickness | Pilot Hole Depth | Linear Spacing | Coverage |
4” (115mm) | 85mm | 120mm | 10.1m |
9” (230mm) | 200mm | 120mm | 5.1m |
13” (345mm) | 315mm | 120mm | 3.3m |
18” (450mm) | 420mm | 120mm | 2.5m |
Strucsol Diffusion DPC is for remedial rising damp treatments. It is a cream that is injected into holes drilled along a mortar bed using an applicator gun. Once injected, the unique silicone formulation spreads along the mortar bed before curing to form a damp-proof course.

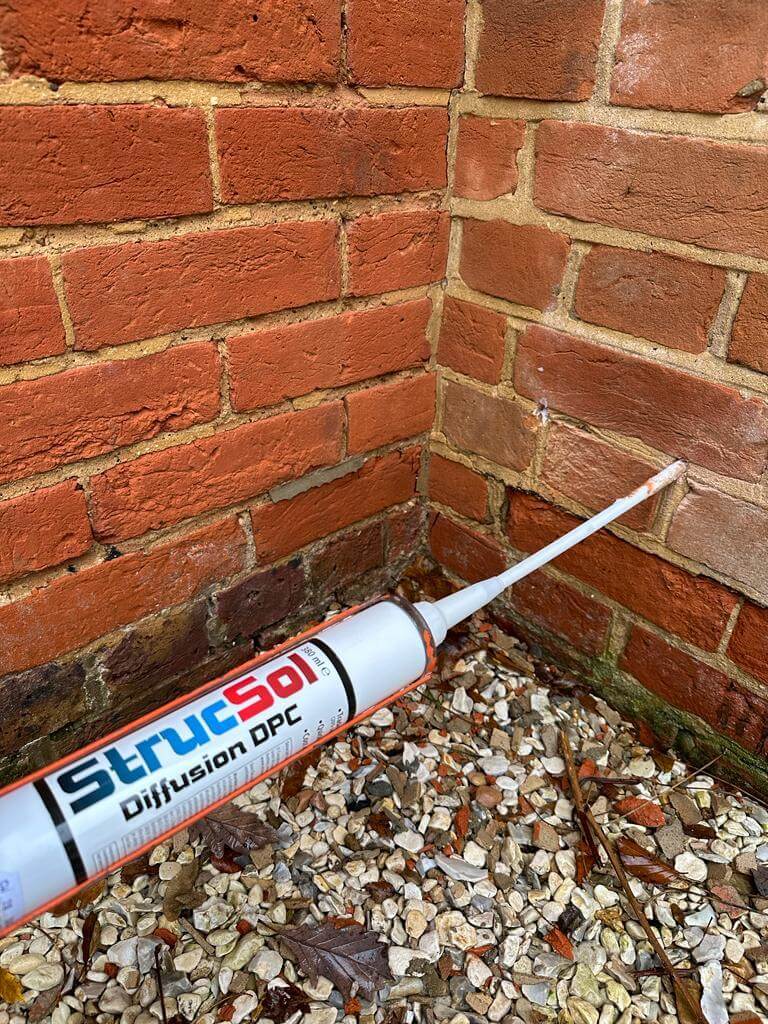

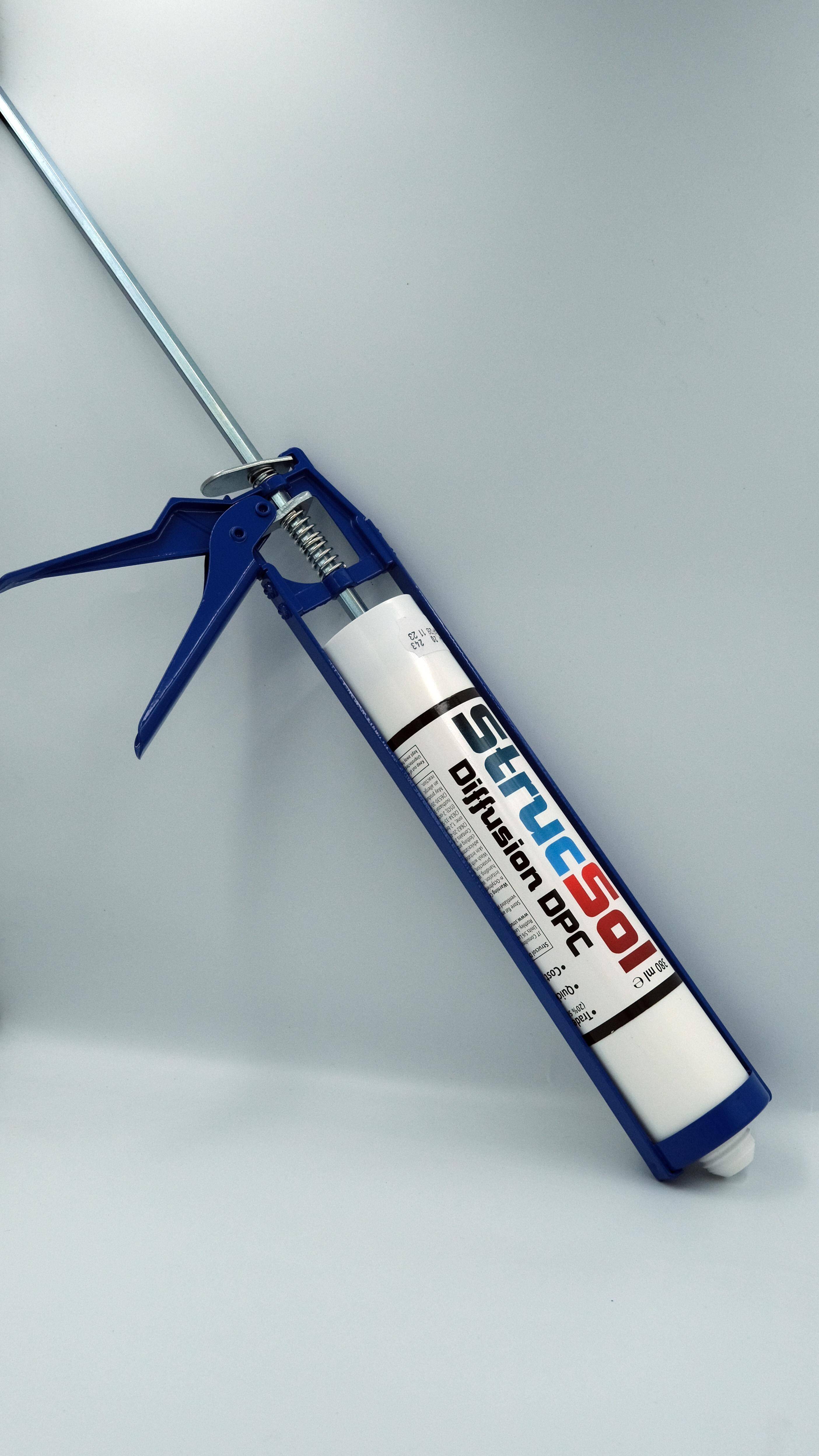

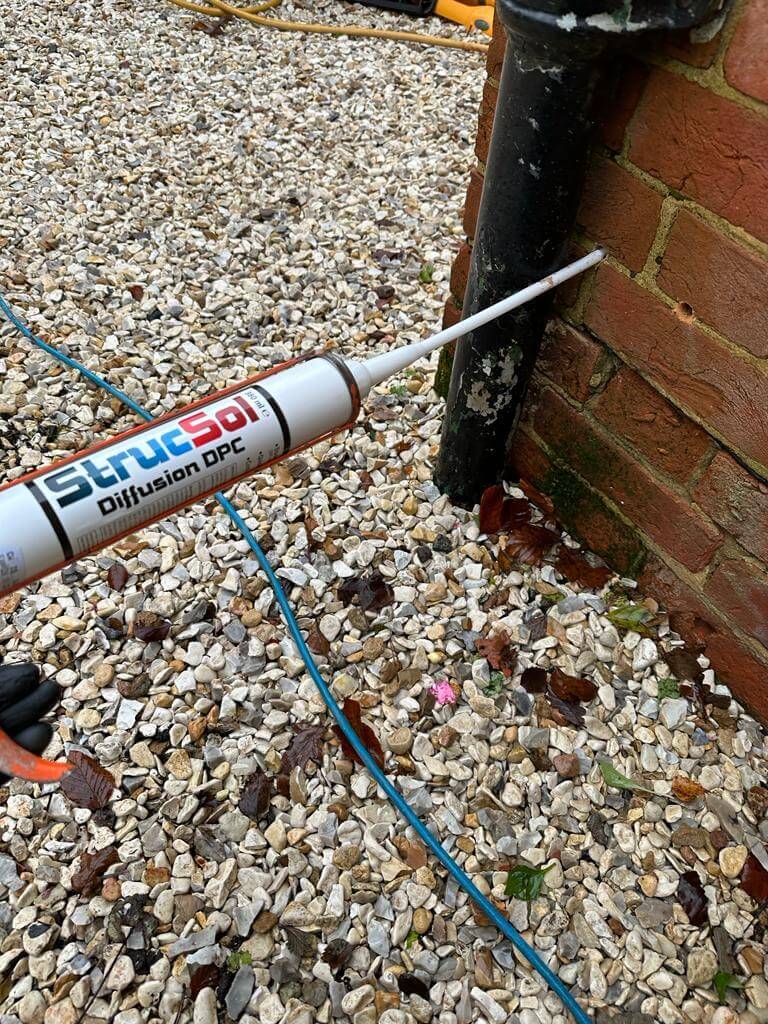

Diffusion D.P.C has been developed to reduce the reliance on high pressure pumping equipment to insert a chemical D.P.C. Diffusion D.P.C is delivered into the damp wall via a series of 10mm diameter holes drilled at 150mm spacings 150mm above ground- it is pumped into the pre drilled holes via a simple calking gun or a hand pump where large volumes are required. A reservoir of diffusion is left in the drilled hole which over a short period of time disperses into the porous materials of the wall and sets to form a moisture impervious barrier. The diffusion barrier prevents further passage of moisture from below ground entering into the superstructure.
Benefits
Not sure about your repair/job?
Call us! We love to talk to our customers about their repairs and what they will need.
!
